Skull AP Positioning Guide for Radiography Students
Skull AP positioning is a common head radiography projection used to assess the skull, frontal bone, and facial bone. This guide explains the patient position, central ray, evaluation criteria, and practical positioning points in a clear study-friendly format.
| Region | Skull, frontal bone, facial bone |
|---|---|
| Pathology | Fracture and bony lesion of the skull and facial bone |
| IR size | 24 × 30 cm (10 × 12 inch) |
| SID | 100 cm (40 inches) |
| Central ray | Perpendicular beam directed at the glabella with 0° angulation |
| Respiration | Suspended |
Patient positioning for skull AP

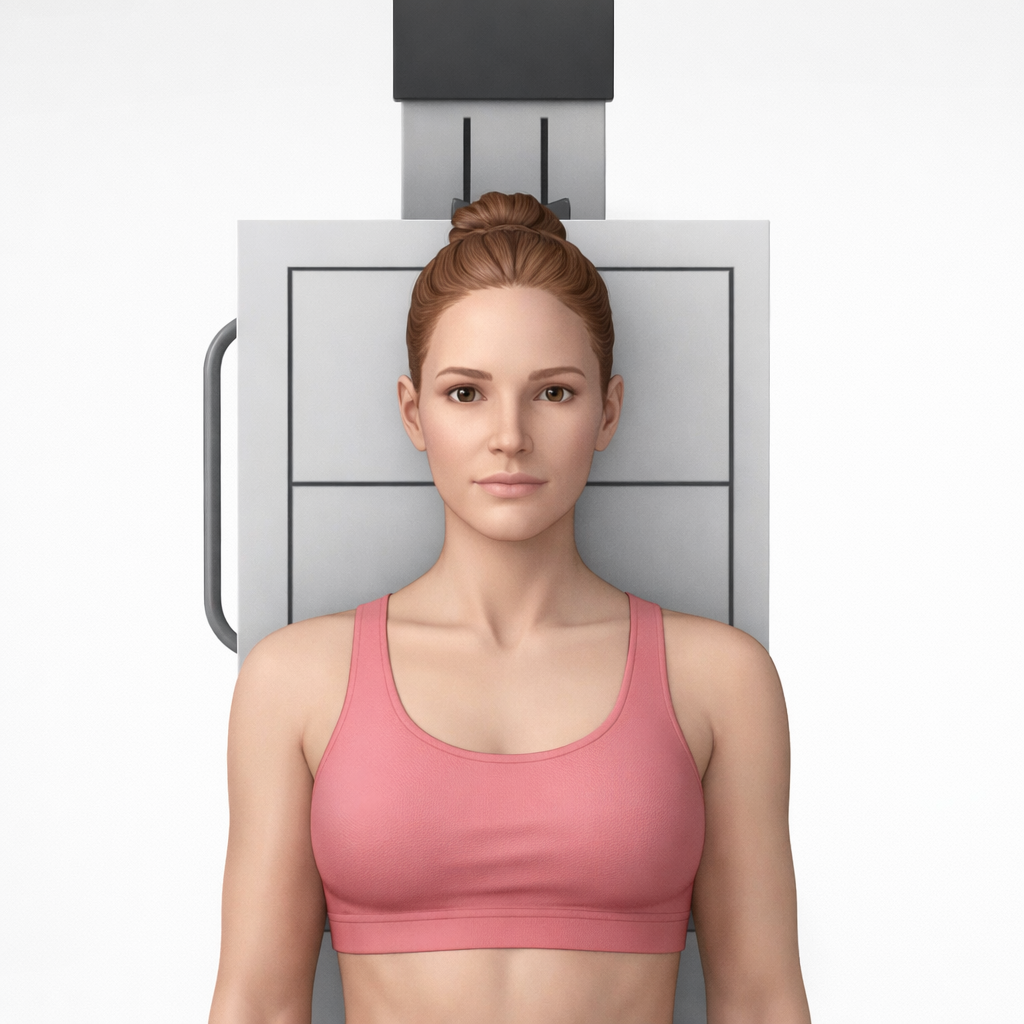

Place the patient erect, seated, or supine. Align the midsagittal plane to the center of the image receptor and flex the neck so the orbitomeatal line is perpendicular to the receptor. Gently position the occipital region toward the receptor and center the nasion.
Anatomy demonstrated and image evaluation
A good skull AP image should demonstrate the frontal bone, ethmoid sinus, nasal septum, and related structures clearly. The petrous ridges should superimpose with the superior orbital margins and both sides should appear symmetrical without rotation.
Common positioning tips
When neck flexion is difficult, adjust carefully rather than forcing the patient. If needed, adapt using the inferior orbitomeatal line and modify beam angulation. Maintain patient comfort and complete the exposure efficiently.
Frequently asked questions
What does the skull AP view show?
The skull AP view demonstrates the skull, frontal bone, and facial bone while allowing evaluation of symmetry and key cranial structures.
Where is the central ray for skull AP?
The central ray is directed perpendicular to the glabella with no angulation in the standard skull AP projection.
